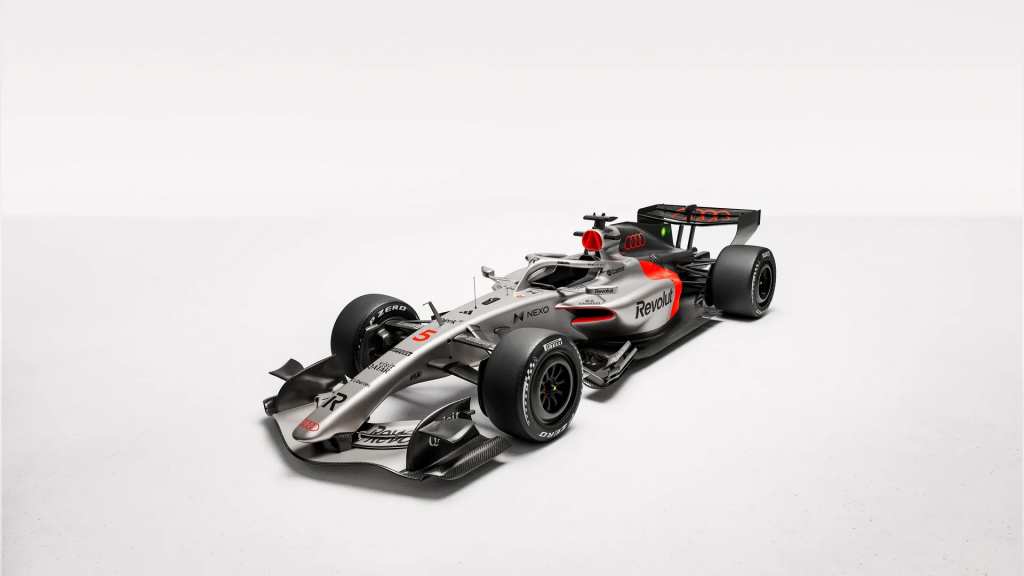

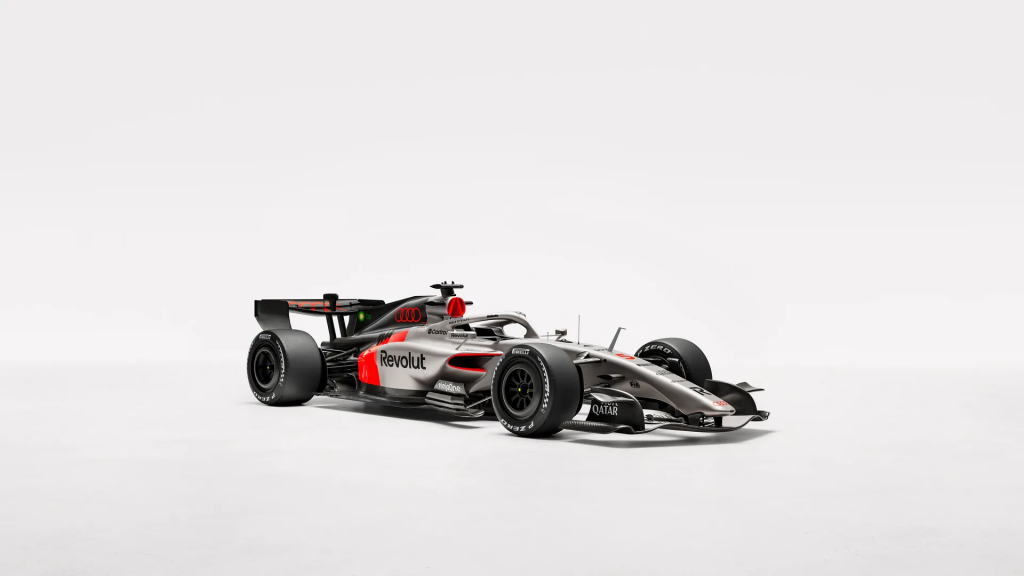

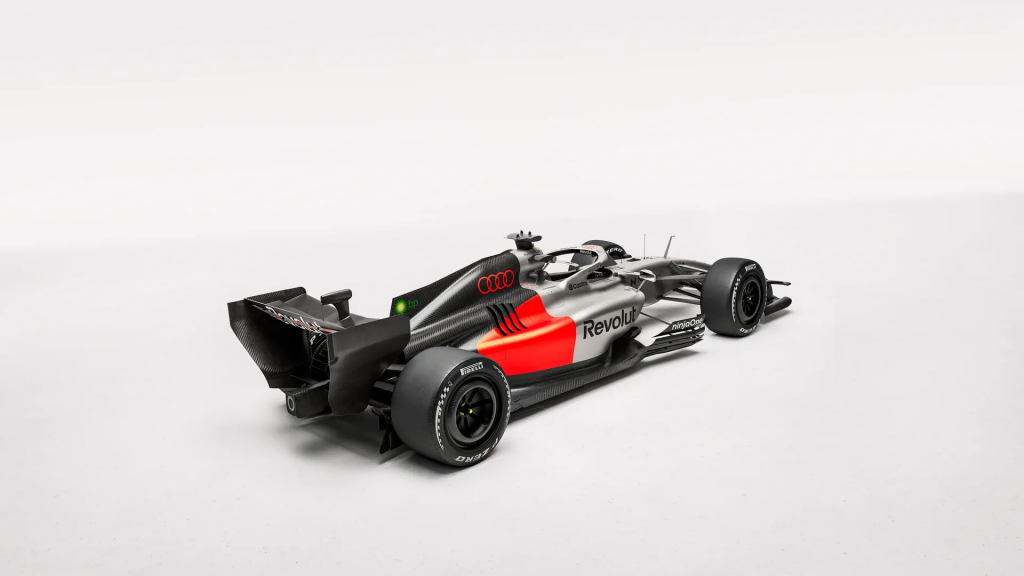

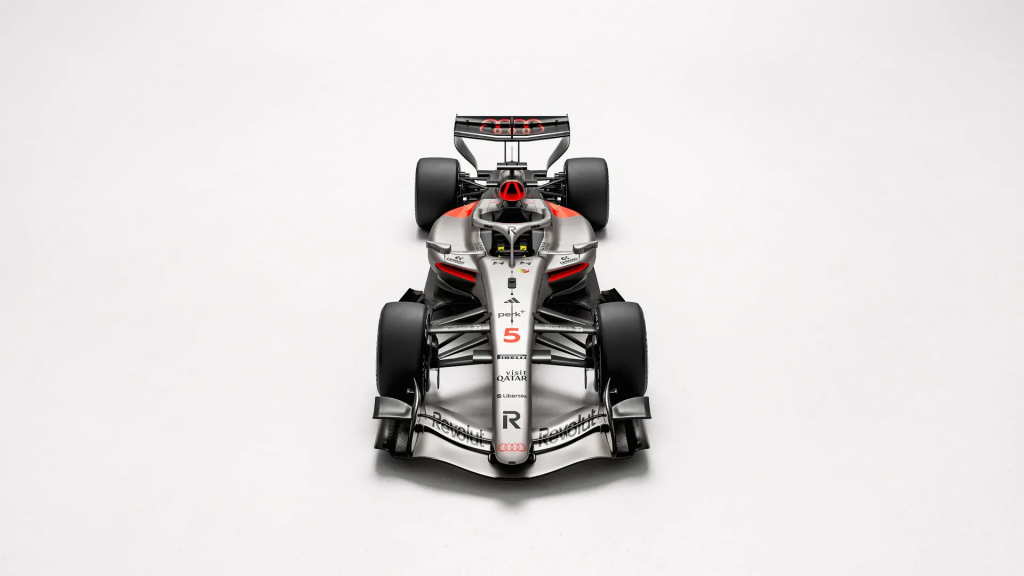

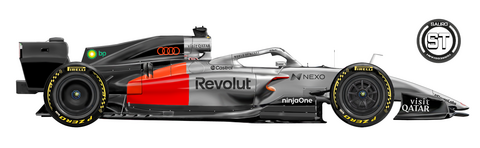

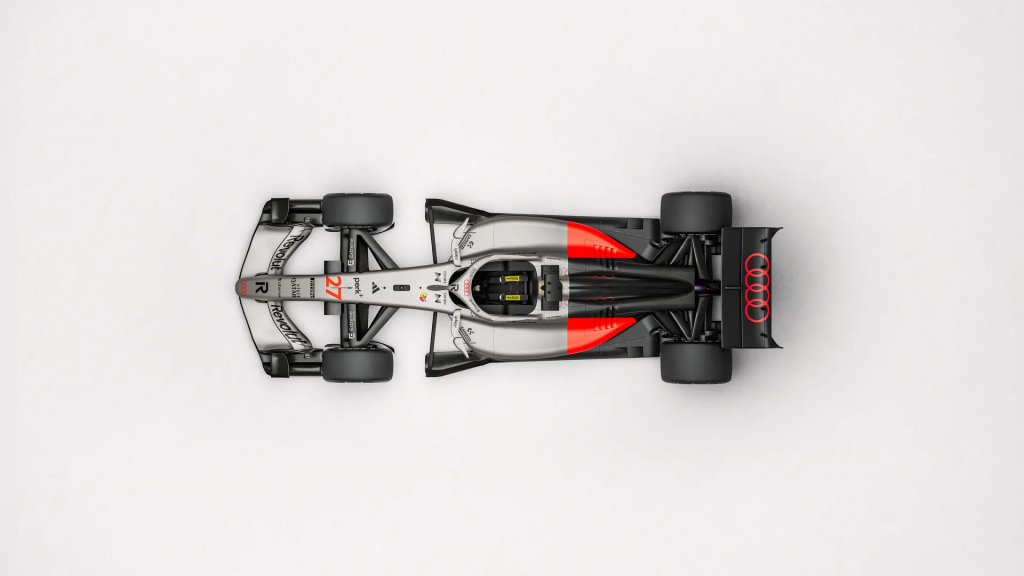

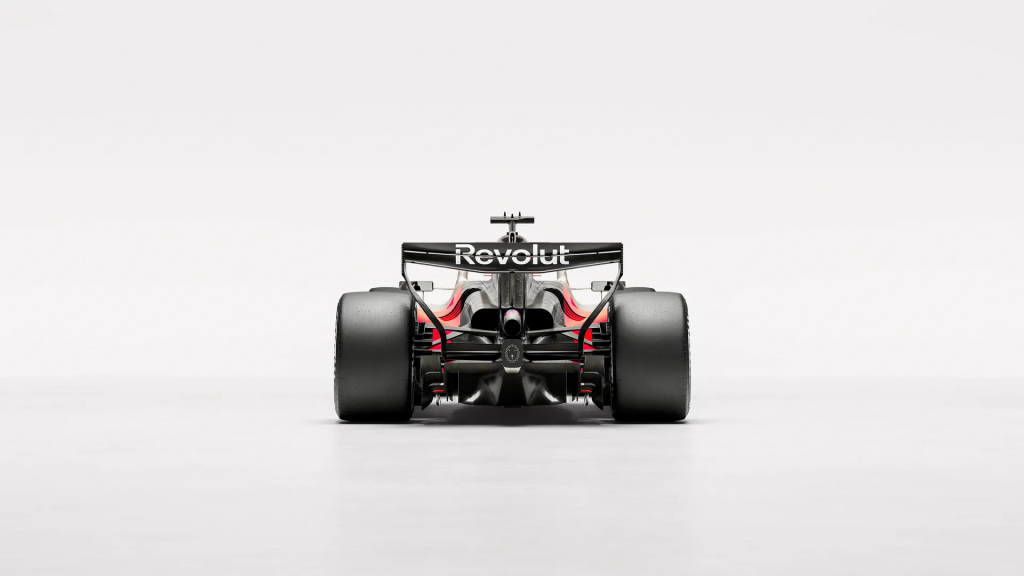

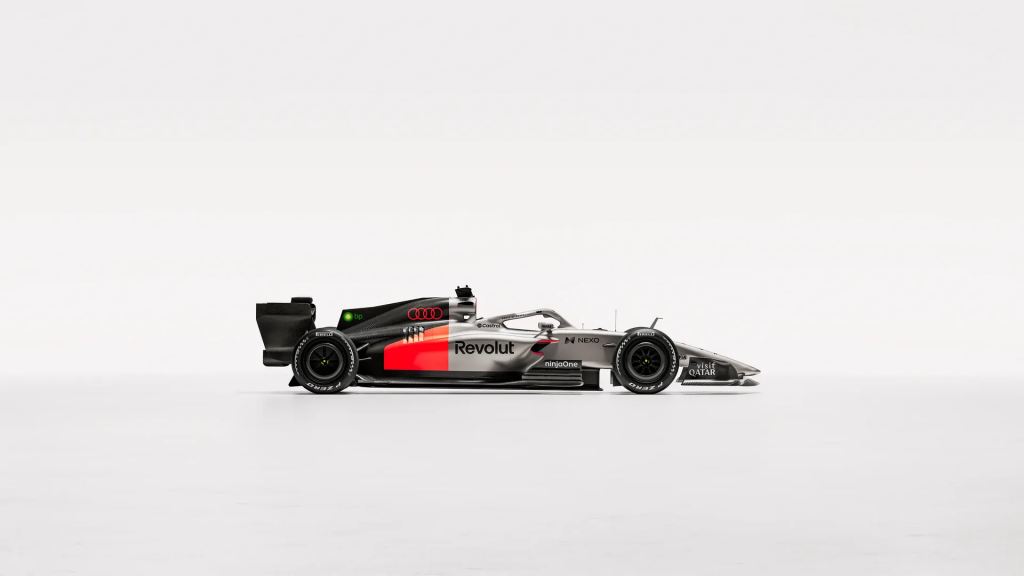

AUDI REVOLUT F1 TEAM R26
TITLE PARTNERS
AUDI • Revolut
PRINCIPAL PARTNERS
Visit Qatar • BP • Castrol
TEAM PARTNERS
adidas • Aleph • Nexo • NinjaOne • Gilette • World of Hyatt • Perk
IC! Berlin • Libertex • ElevenLabs • Camozzi • Piquadro
TEAM SUPPLIERS
Paulaner München 0.0 • Pirelli • Extreme Networks • Specialized
Bell • Jig Space • Glasurit • Mammoet • Sabelt
CAR SPECIFICATIONS
Survival cell Audi Revolut F1 Team moulded carbon fibre composite structure incorporating ATL fuel cell bladder
Safety Structures Intrusion protected monocoque, impact absorbing front, side and rear structures, principal roll structure (roll hoop),
secondary roll structure (halo)
Cockpit Bespoke carbon fibre composite seat, Sabelt 6-point safety harness
Bodywork Key bodywork components made from carbon fibre composite such as front wing, nose, sidepods, engine cover, floor and rear wing
Front Suspension Carbon fibre double wishbone, pushrod-activated inboard torsion springs, rockers and Öhlins damper units
Rear Suspension Carbon fibre double wishbone, pushrod-activated inboard torsion springs, rockers and Öhlins damper units
Brake System Carbon self-ventilating Brembo brake discs (front and rear) andelectronic control hydraulic system for the rear brakes (Brake by Wire).
Brembo monobloc calipers in nickel-plated aluminum alloy machined from solid (front and rear). Brembo tandem master cylinder (with action on front and rear).
Steering System Power-assisted rack and pinion, customised carbon fibre steering wheel
Electronics FIA approved electronics, electrical system including FIA standard ECU
Power Unit AFR 26 Hybrid
Energy Recovery System AFR 26 Hybrid. Energy recovery system via electrical Motor Generator Unit MGU-K
Gearbox Audi Revolut F1 Team carbon fibre maincase with cassette containing eight forward speeds and one reverse
Gear Selection Sequential, semi-automatic
Clutch Carbon composite
Wheels 18” APP Tech magnesium wheels
Tyres Pirelli
DIMENSIONS
Overall Length 5440mm
Overall Width 1,900 mm
Overall Height 980 mm
Wheelbase ≤3,400 mm
Weight 770kg
AUDI POWER UNIT AFR 26 HYBRID
Configuration 90° V6
Displacement 1,600 cc
Bore 80 mm
Stroke 53 mm
Valves 4 per cylinder
Turbo Charging Single turbine and compressor
Max Fuel Energy Flow 3000 MJ/h
Injection 350 bar – direct
AUDI ENERGY RECOVERY SYSTEM AFR 26 HYBRID
Architecture Hybrid energy recovery system via electrical Motor Generator Unit, MGU-K
Energy Store Lithium-Ion battery, ≥35kg
Max Energy Deployment 4 MJ
MGU-K Max Power 350 kW (470hp)
MGU-K Max RPM 60,000 rpm
